KRM Tyres

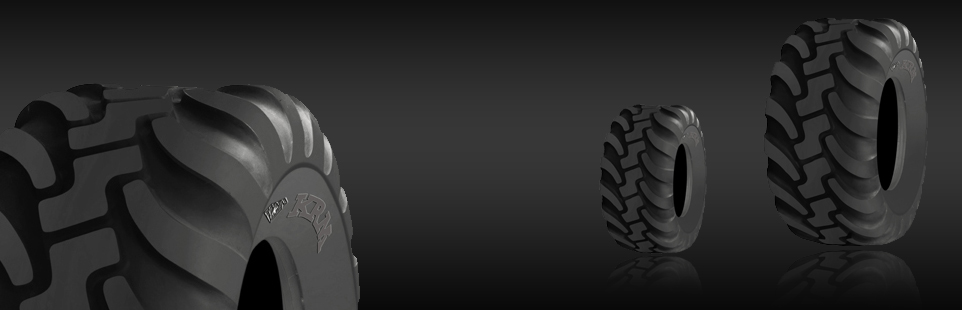

Flotation Tyre

Home / Flotation Tyre

KT 191

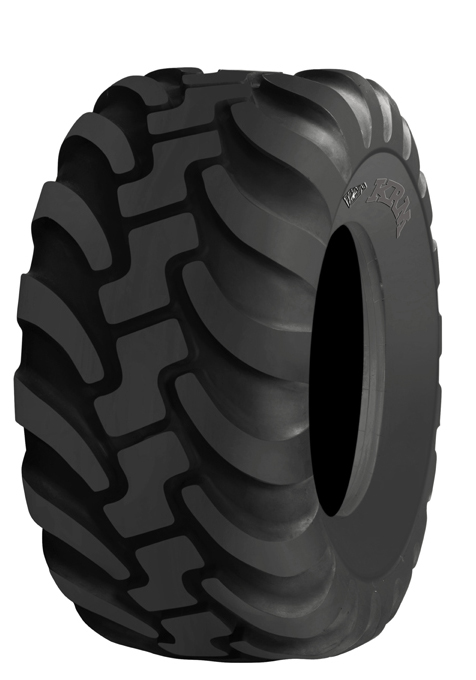

KT 191-A

Type Size	Pattern	Rim Width(inch.)	Unloaded Inflation Dimension +/-2%		Static Loaded Radius(mm) +/-2%	Rolling Circumference +/-2.5% (mm)	Ply Rating	Type	Load Capacity
			Unloaded Inflation Dimension +/-2%						Free Rolling Wheel						Drive Wheel
			Section Width (mm)	Overall Diameter(mm)					40 km/h			50 km/h			40km/h			50km/h
			Section Width (mm)	Overall Diameter(mm)					Load Index	Max load (kgs)	Inflation Pressure Bar	Load Index	Max load (kgs)	Inflation Pressure Bar	Load Index	Max load (kgs)	Inflation Pressure Bar	Load Index	Max load (kgs)	Inflation Pressure Bar
400/55-22.5	KT-191	11.75	407	1020	445	2955	14	TL	150	3350	3.5	146	3000	3.5	138	2360	3.5	134	2120	3.5
400/55-22.5	KT-191	11.75	407	1020	445	2955	16	TL	152	3550	4	148	3140	4	140	2500	4	136	2240	4
400/60-22.5	KT-191	11.75	400	1070	475	3092	16	TL	156	4000	3.5	149	3200	3.5	144	2800	3.5	136	2240	3.5
385/65-22.5	KT-191	11.75	407	1070	475	3092	18	TL	160	4500	4.3	153	3600	4.3	148	3150	4.3	140	2500	4.3
500/45-22.5	KT-191	16	500	1015	442	2935	12	TL	148	3150	2.7	144	2800	2.7	136	2240	2.7	132	2000	2.7
500/45-22.5	KT-191	16	500	1015	442	2935	16	TL	154	3750	3.6	150	3350	3.6	142	2650	3.6	138	23690	3.6
500/50-22.5	KT-191	16	500	1070	475	3092	16	TL	158	4250	3	155	3875	3	146	3000	3	142	2650	3
500/60-22.5	KT-191	16	500	1070	510	3380	16	TL	163	4875	3.2	159	4375	3.2	151	3450	3.2	148	3150	3.2
550/45-22.5	KT-191	12	550	1070	475	3092	16	TL	153	3650	2.1	150	3350	2	144	2800	2.2	141	2575	2
550/45-22.5	KT-191	16	550	1070	475	3092	16	TL	159	4375	2.8	156	4000	2.8	147	3075	2.8	144	2800	2.8
550/50-22.5	KT-191	16	550	1230	540	3555	12	TL	160	4500	2.1	156	4000	2.1	148	3150	2.1	144	2800	2.1
550/60-22.5	KT-191	16	550	1230	540	3555	12	TL	160	4500	2.3	157	4125	2.1	160	4500	2.3	154	3750	2
550/60-22.5	KT-191	16	550	1230	540	3555	16	TL	166	5300	3	163	4875	2.8	166	5300	3	162	4750	2.2
560/60-22.5	KT-191A	16	565	1250	550	3650	12	TL	167	5450	3.3	164	5000	3	164	5000	3	161	4625	2.8
560/60-22.5	KT-191A	16	565	1250	550	3650	16	TL	170	5800	3.5	169	5800	3.7	169	5800	3.7	166	5300	3.4
560/60-22.5	KT-191A	16	565	1250	550	3650	16	TL	175	6900	3.7	172	6300	4	172	6300	4	169	5800	3.5
600/50-22.5	KT-191	20	600	1170	510	3380	12	TL	159	4375	2	156	4000	2	147	3075	2	144	2800	2
600/50-22.5	KT-191	20	600	1170	510	3380	16	TL	165	5150	2.6	161	4625	2.6	153	3650	2.6	149	3250	2.6
600/55-22.5	KT-191	20	600	1230	540	3555	12	TL	164	5000	2	160	4500	2	151	3450	2	148	3150	2
600/55-22.5	KT-191	20	600	1230	540	3555	16	TL	169	5800	2.6	166	5300	2.6	156	4000	2.6	153	3650	2.6
700/40-22.5	KT-191	24	700	1170	510	3380	12	TL	160	4500	1.7	157	4125	1.7	148	3150	1.7	144	2800	1.7
700/40-22.5	KT-191	24	700	1170	510	3380	16	TL	166	5300	2.2	162	4750	2.2	154	3750	2.2	150	3350	2.2
700/50-22.5	KT-191	24	700	1270	550	3670	12	TL	168	5600	1.8	164	5000	1.8	156	4000	1.8	153	3650	1.8
700/50-22.5	KT-191	24	700	1270	550	3670	16	TL	174	5700	2.4	170	6000	2.4	162	4750	2.4	158	4250	2.4
600/56-26.5	KT-191	20	600	1340	585	3870	12	TL	165	5150	2	161	4625	2	153	3650	2	149	3250	2
600/55-26.5	KT-191	20	600	1340	585	3870	16	TL	170	6000	2.6	167	5450	2.6	159	4375	2.6	156	4000	2.6
700/50-26.5	KT-191	24	700	1340	585	3870	12	TL	169	5800	1.8	165	5150	1.8	157	4125	1.8	154	3750	1.8
800/45-26.5	KT-191	24	700	1340	585	3870	16	TL	174	6700	2.4	170	6000	2.4	162	4750	2.4	158	4250	2.4
800/45-26.5	KT-191	28	800	1340	585	3870	12	TL	170	6000	1.7	167	5450	1.7	158	4250	1.7	155	3875	1.7
800/45-26.5	KT-191	28	800	1340	585	3870	16	TL	177	7300	2.2	173	6500	2.2	164	5000	2.2	160	4500	2.2
650/65-30.35	KT-191	20	650	1650	710	4770	12	TL	174	6700	1.7	170	6000	1.7	162	4750	1.7	158	4250	1.7
650/65-30.35	KT-191	20	650	1650	710	4770	12	TL	179	7750	2.2	175	6900	2.2	167	5450	2.2	163	4875	2.2
750/60-30.5	KT-191	24	750	1650	710	4770	12	TL	176	7100	1.7	172	6300	1.7	164	5000	1.7	160	4500	1.7
750/60-30.5	KT-191	24	750	1650	710	4770	16	TL	182	8500	2.2	179	7750	2.2	170	6000	2.2	167	5450	2.2
850/50-30.5	KT-191	28	850	1650	710	4770	12	TL	180	8000	1.5	176	7100	1.5	168	4600	1.5	164	5000	1.5
850/50-30.5	KT-191	28	850	1650	710	4770	16	TL	186	9500	2.2	182	8500	2.2	174	6700	2.2	170	6000	2.2
